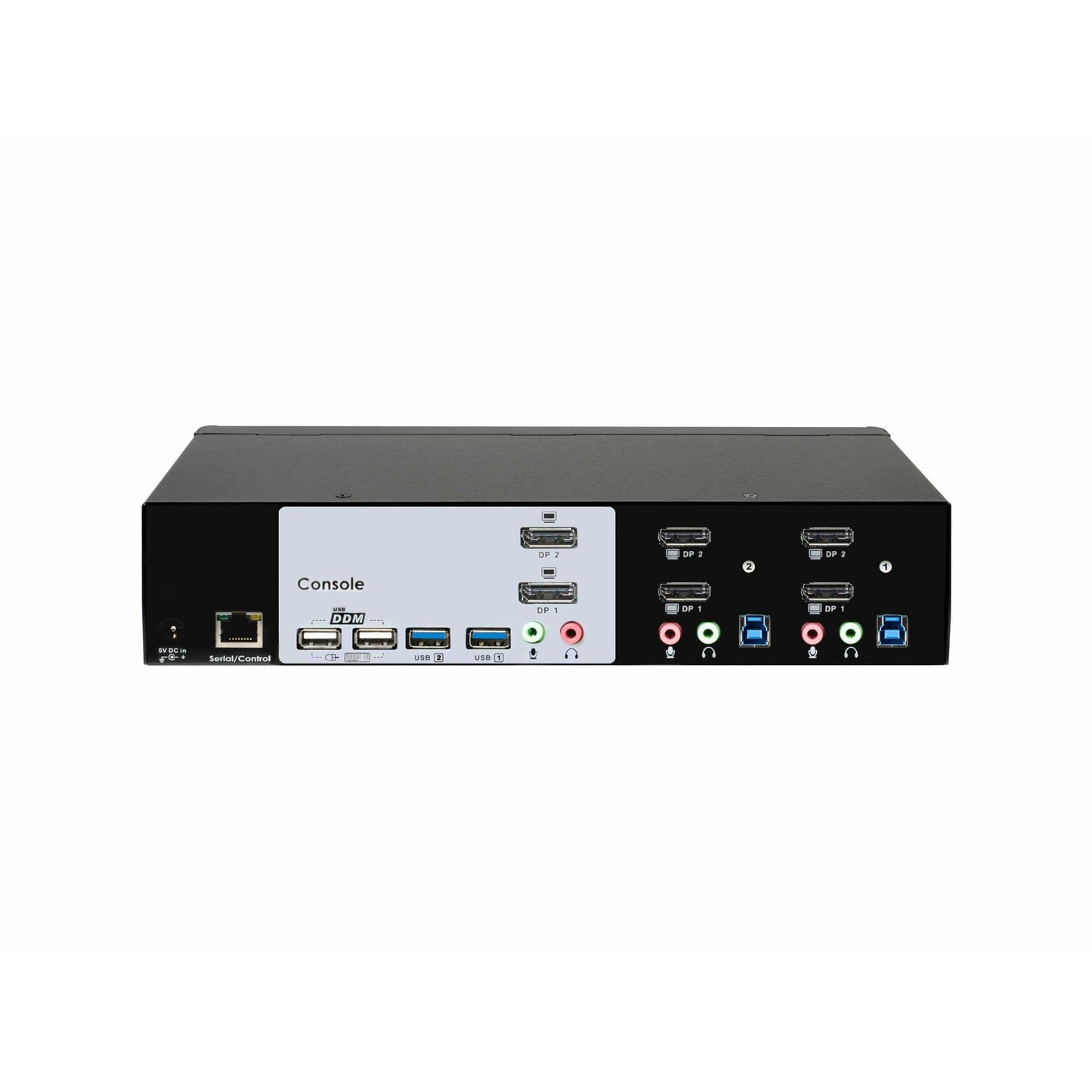

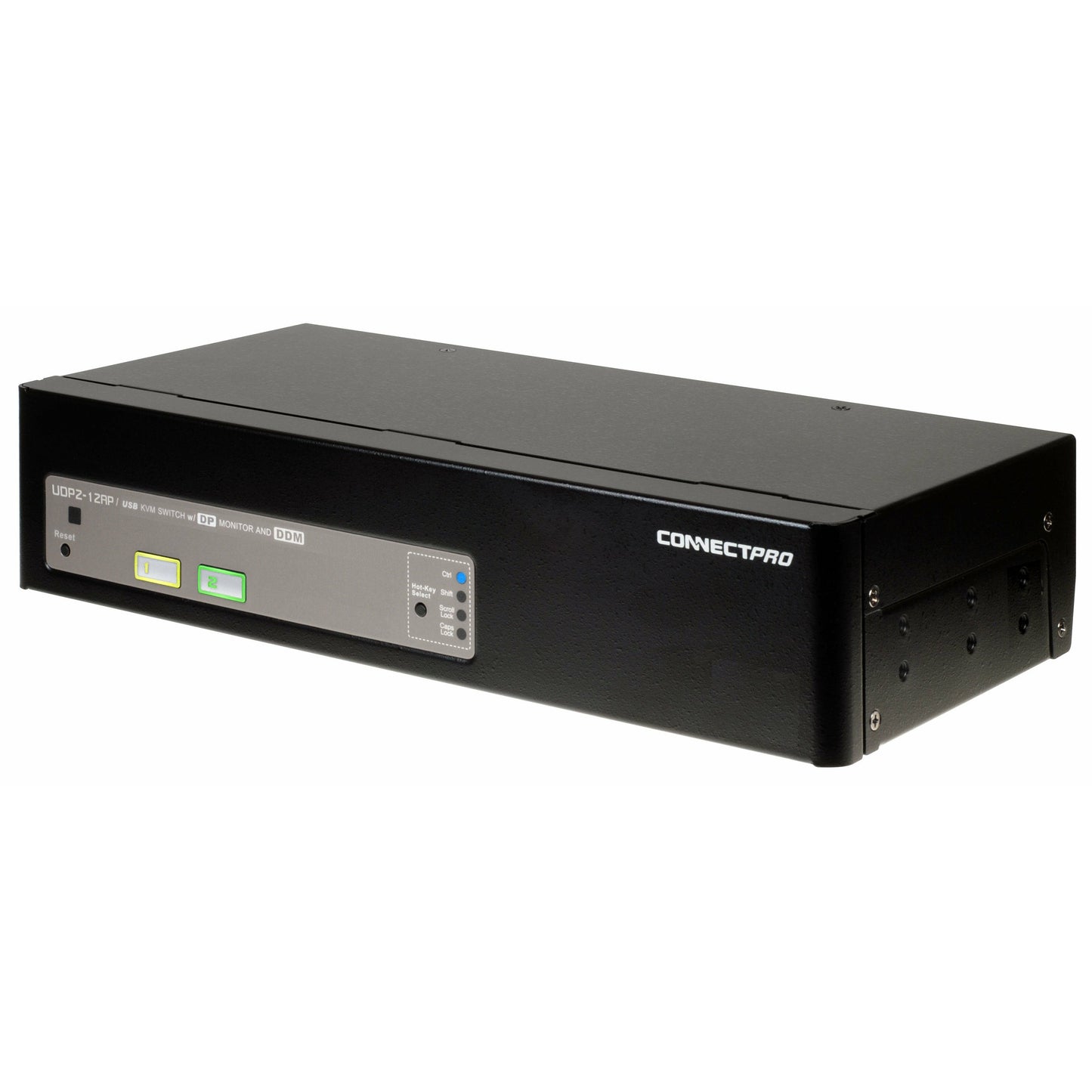

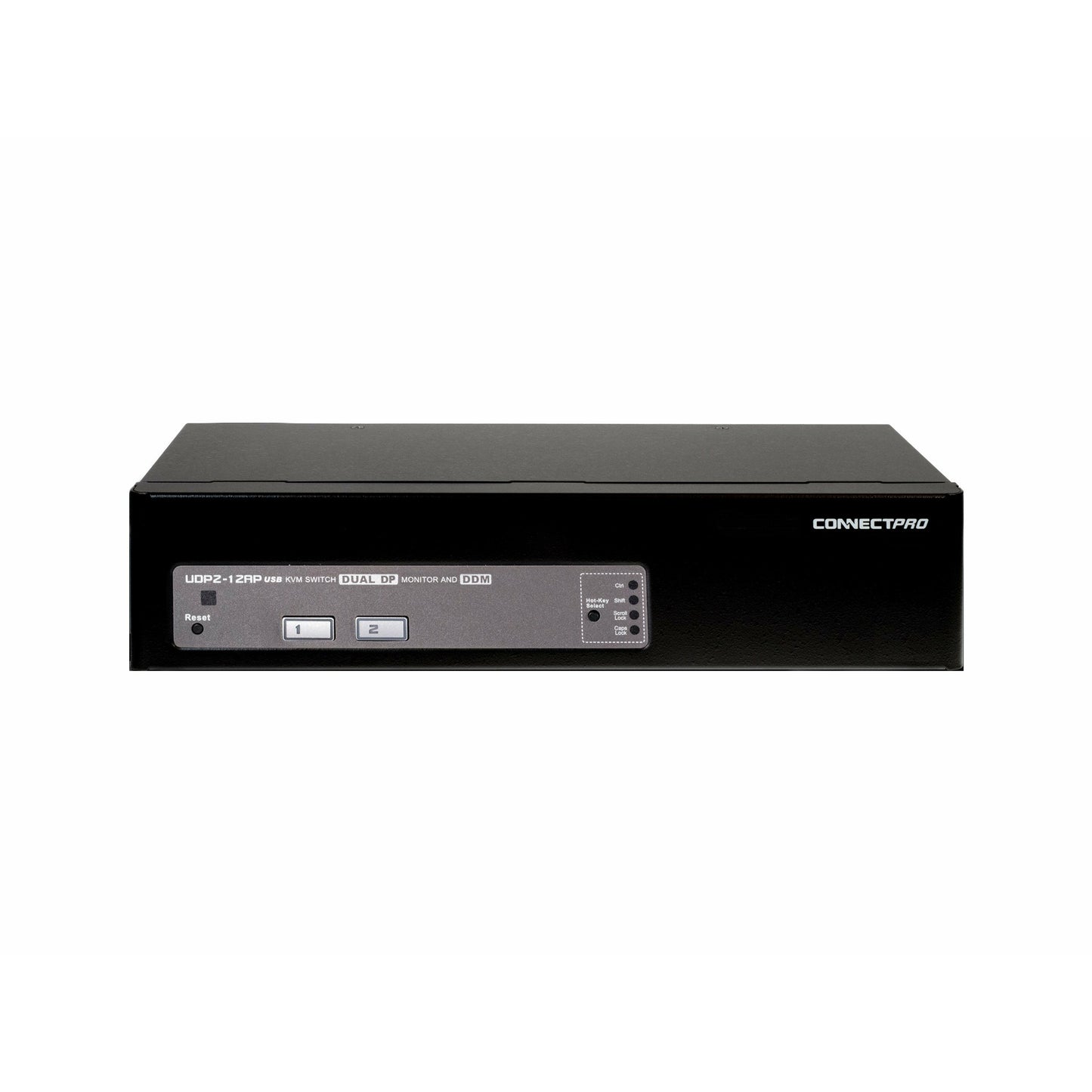

UDP2-12AP DisplayPort 1.4 KVM Switch for Dual Monitors and 2 Systems

UDP2-12AP DisplayPort 1.4 KVM Switch for Dual Monitors and 2 Systems

Cable Options
Regular price $519.00 USD
Regular price Sale price $519.00 USD
Sale Sold out
Shipping calculated at checkout.

Order Information:

 Product SKU What's included
UDP2-12AP KVM switch with power supply cable
UDP2-12AP+KIT-6 KVM switch with 6 ft. cables set (4 DisplayPort cables + 2 USB 3.0 cables + 2 audio cables + power supply cable)
UDP2-12AP+KIT-FOC KVM switch with 6 ft. DisplayPort cables set (6 DisplayPort 2.1 cables + 2 USB 3.0 cables + 2 audio cables + power supply cable)


The ConnectPRO Industry-grade DDM class DisplayPort 1.4 USB 3.0 KVM switch for sharing 2 monitors, USB 3.0 devices for two computer systems or laptop computers.

  • Support high resolution and high refresh rate up to 8K60hz (w/ DP1.4 DSC), 5K240(w/ DP1.4 DSC), 5K2880/60, 5K120hz, 4k 120 hz-144 hz, 3440x1440 144hz, 2560x1440 185~144hz when using the KVM switch in conjunction with fiber optic DisplayPort 1.4 cables or VESA certified DisplayPort 2.1 cables.  (4K120~144hz RGB/4:4:4 support is not guaranteed with different combinations of GPU I/O, monitors, cables, and docking stations in the line of connections)
  • Support 4k @ 60Hz~120Hz with VESA-certified copper DisplayPort 1.4 cables
  • Support Apple Mac systems' new video Dynamic Variable refresh rate
  • Support Apple both intel-based and new Apple-silicon-based Mac systems
  • Fastest DisplayPort 1.4 KVM switch line in the world with patent USB DDM and Full-time EDID emulation technology

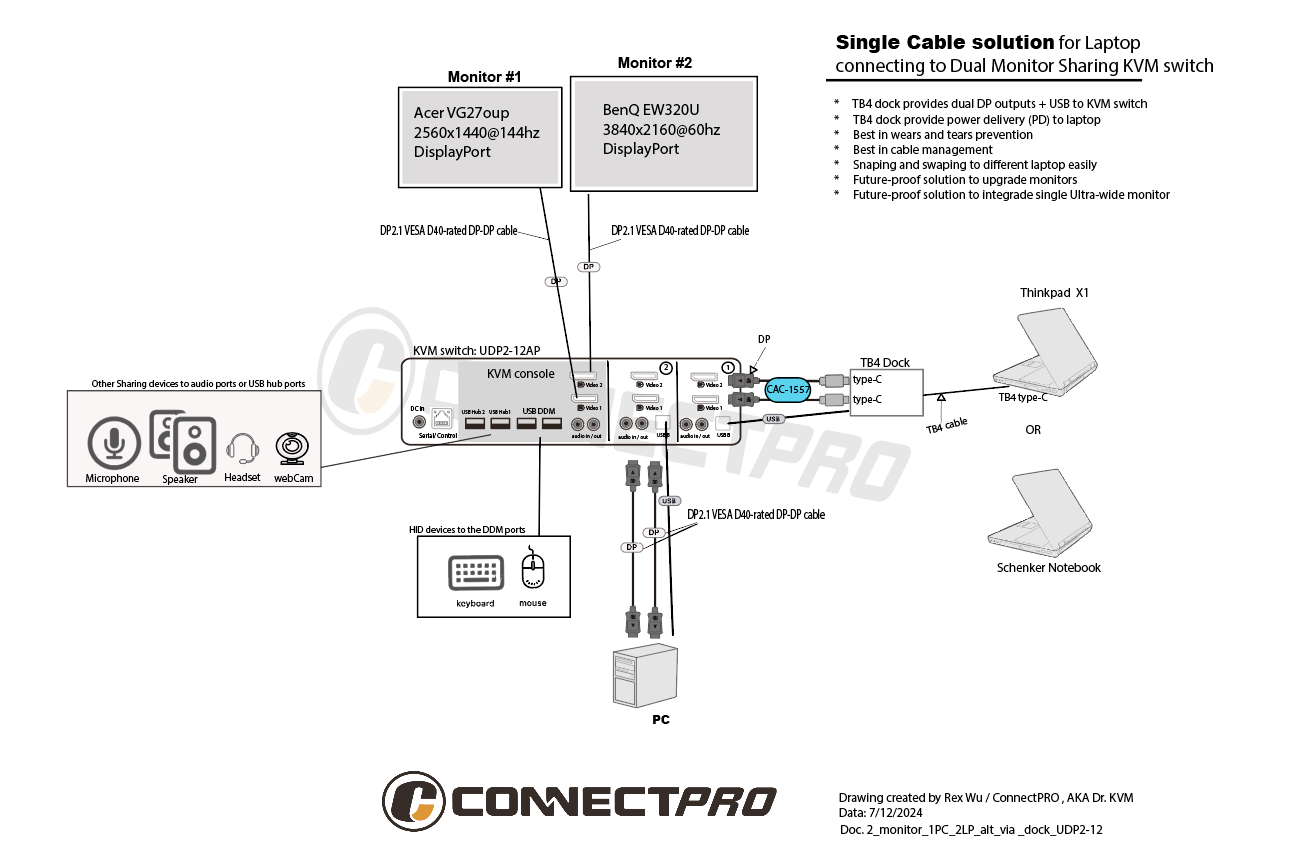

  • Support Thunderbolt 4 hubs and Thunderbolt 4 docking stations connected to laptop computers.
  • The only KVM switch line supports multi-Logitech wireless Unifying Devices for DDM device sharing (no latency HID device sharing)
  • Support DisplayPort bi-direction full-bus link train for better DisplayPort video switching and optimal sync with each GPU on connected systems
  • No video content/ GUI/ desktop app resizing and relocating while switching between connected systems.
  • Fastest switching time up to (less than 0.3 ms)
  • Our patented DDM technology allows no Latency USB HID devices switching (0.0 ms)
  • Stackable design for supporting and controlling more than 2 monitors (stacked two units to support 4 DisplayPort monitors) from one set of HID (keyboard and mouse..etc).
  • Built-in IR sensor for remote control from IR remote controller
  • Built-in serial port for control and firmware upgrade, programmable profile switching and KVM controls
  • Built-in Rackmountable (19-in rackmount kit - optional accessory)
  • Nvidia G-Sync, AMD FreeSync, Adaptive Sync and VESA Adaptive Sync. compatible
  • Industry-leading standard 3-year warranty
  • Lifetime tech support included
  • Product made in Taiwan, designed in US.

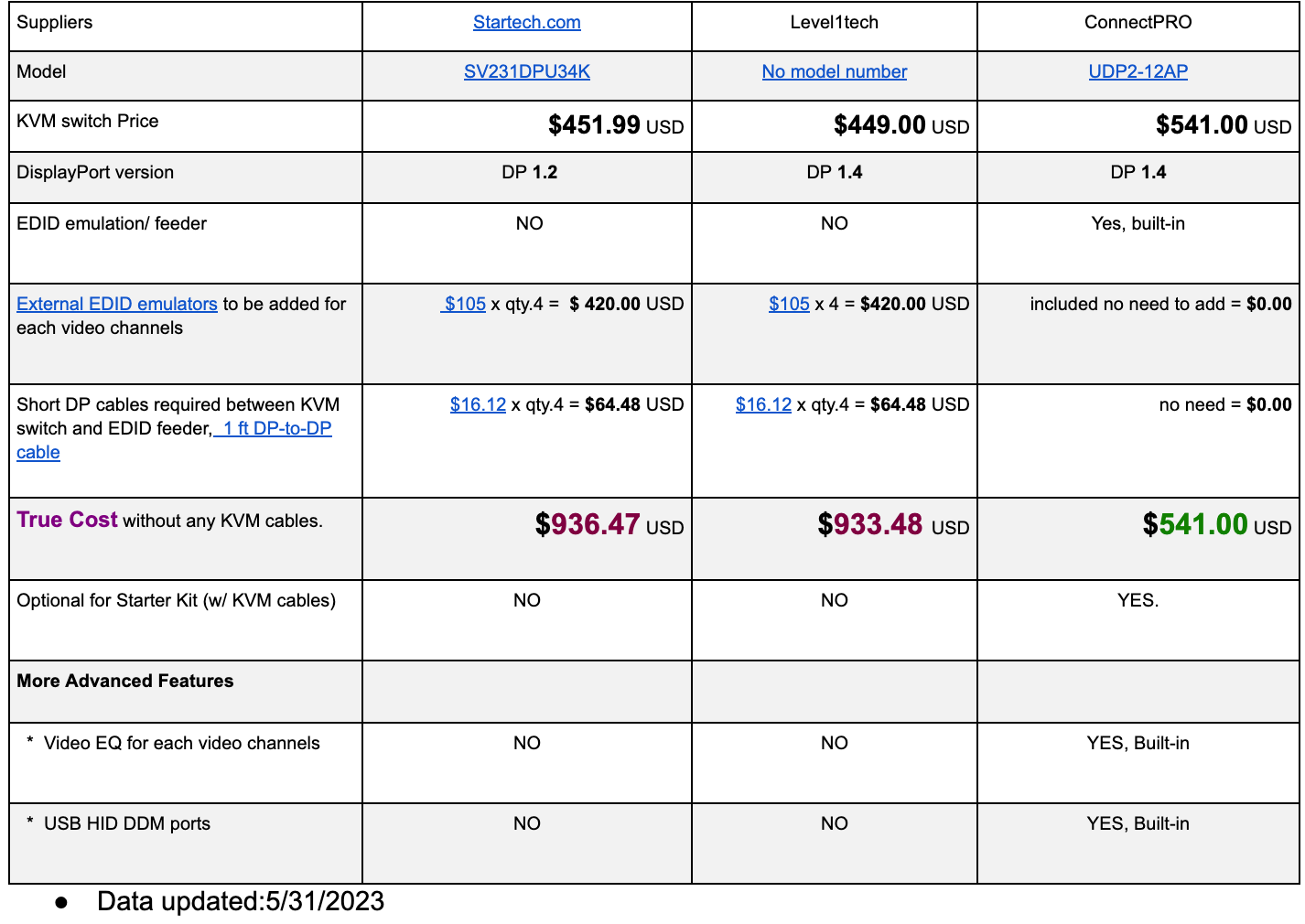

  • The best value and lowest true cost in the class of advanced DP KVM switch.
  • The best KVM switch line for Gaming and WFH.
  • The best KVM switch line for integrating with Thunderbolt docking stations or USB 4 docking stations.
  • Tested and proofed to support DisplayPort 2.1 systems and monitors. (Intel A770, A750 DisplayPort 2.0/2.1 GPU cards)

- Product dimensions are 10.84 inch x 5.16 inch x 2.36 inch. For detailed dimension drawing, please refer to this page.
- If you're looking for a KVM switch solution that offers the fastest speeds, best-in-class performance, and industry-grade reliability, look no further than our product line. Our KVM switches and extenders are designed to provide USB no-latency performance, ensuring that you can switch between devices quickly and seamlessly. Our products are also built to last, with rugged industrial-grade construction that can stand up to the toughest environments. UDP-12AP UDP-12AP DisplayPort 1.4 KVM switch for single monitors and 2 systems

**Please note we do not recommend using LG monitors that have the option to toggle between DisplayPort 1.2 and DisplayPort 1.4 with the KVM switch due to known driver issues present on these types of LG monitors. For more information regarding recommended monitors, please reference the recommended monitors page here.**


***Local delivery + installation service is available for ConnectPRO KVM switches if the delivery address is within 40 miles of zip code 91789. Please contact our sales team at sales@connectpro.com for more details.***
