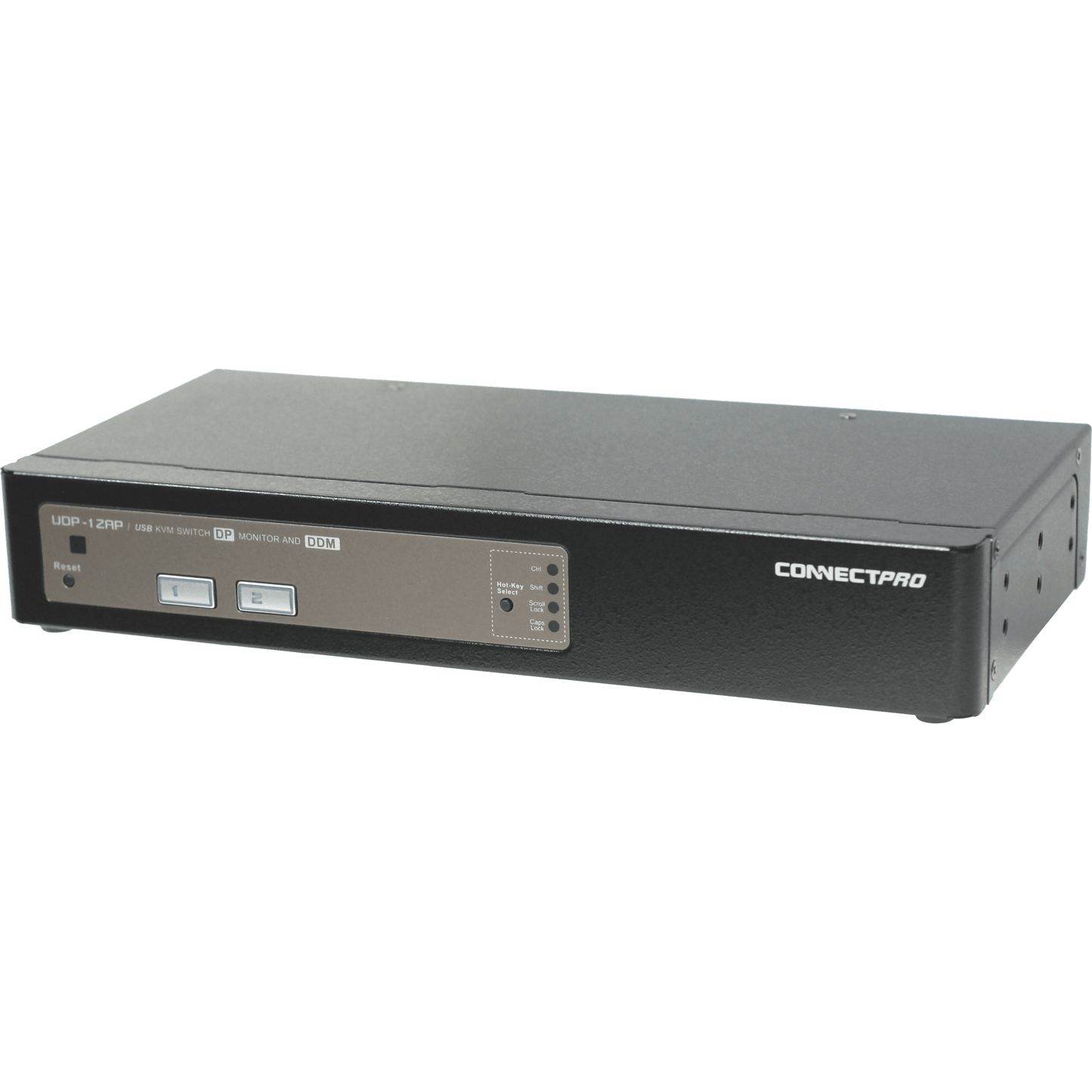

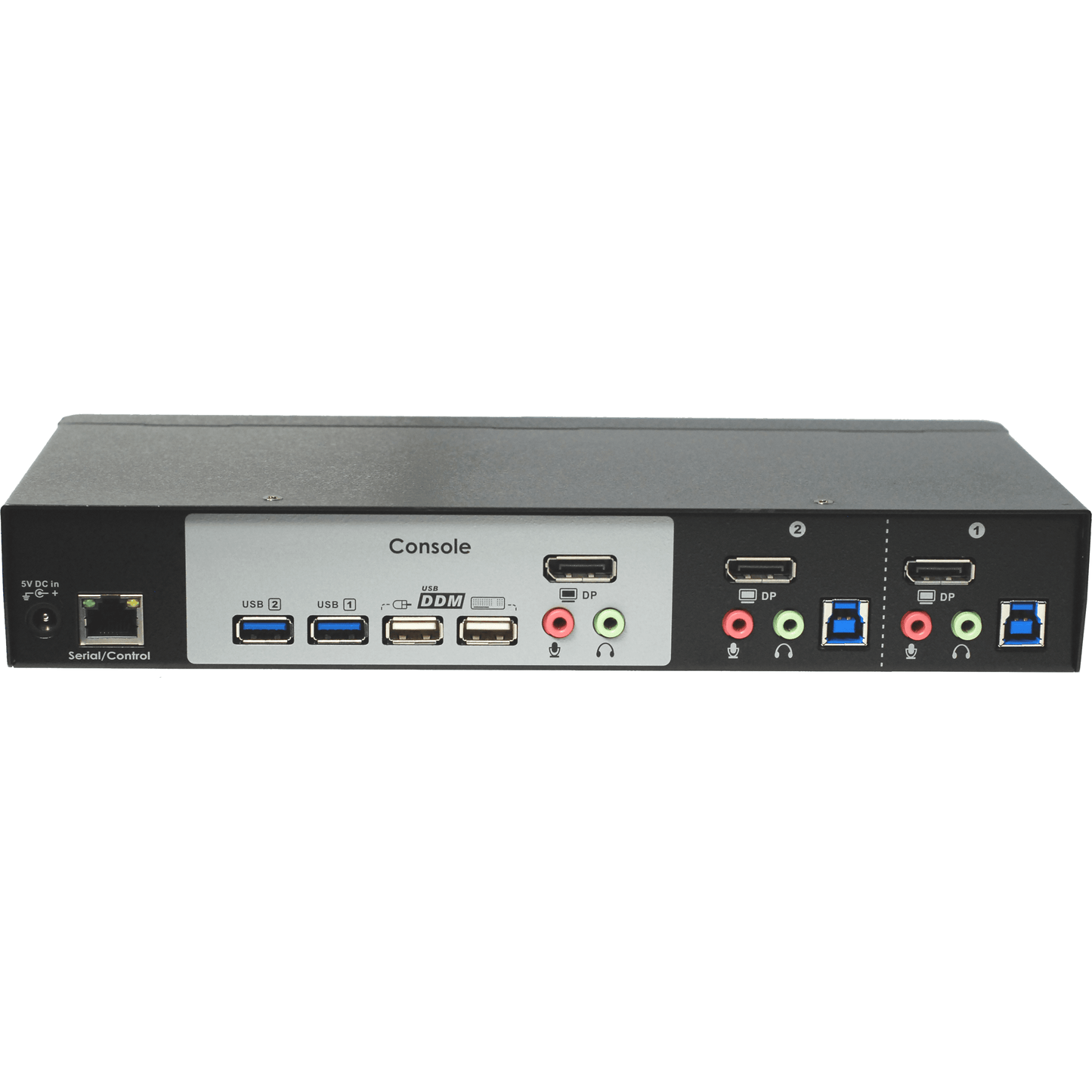

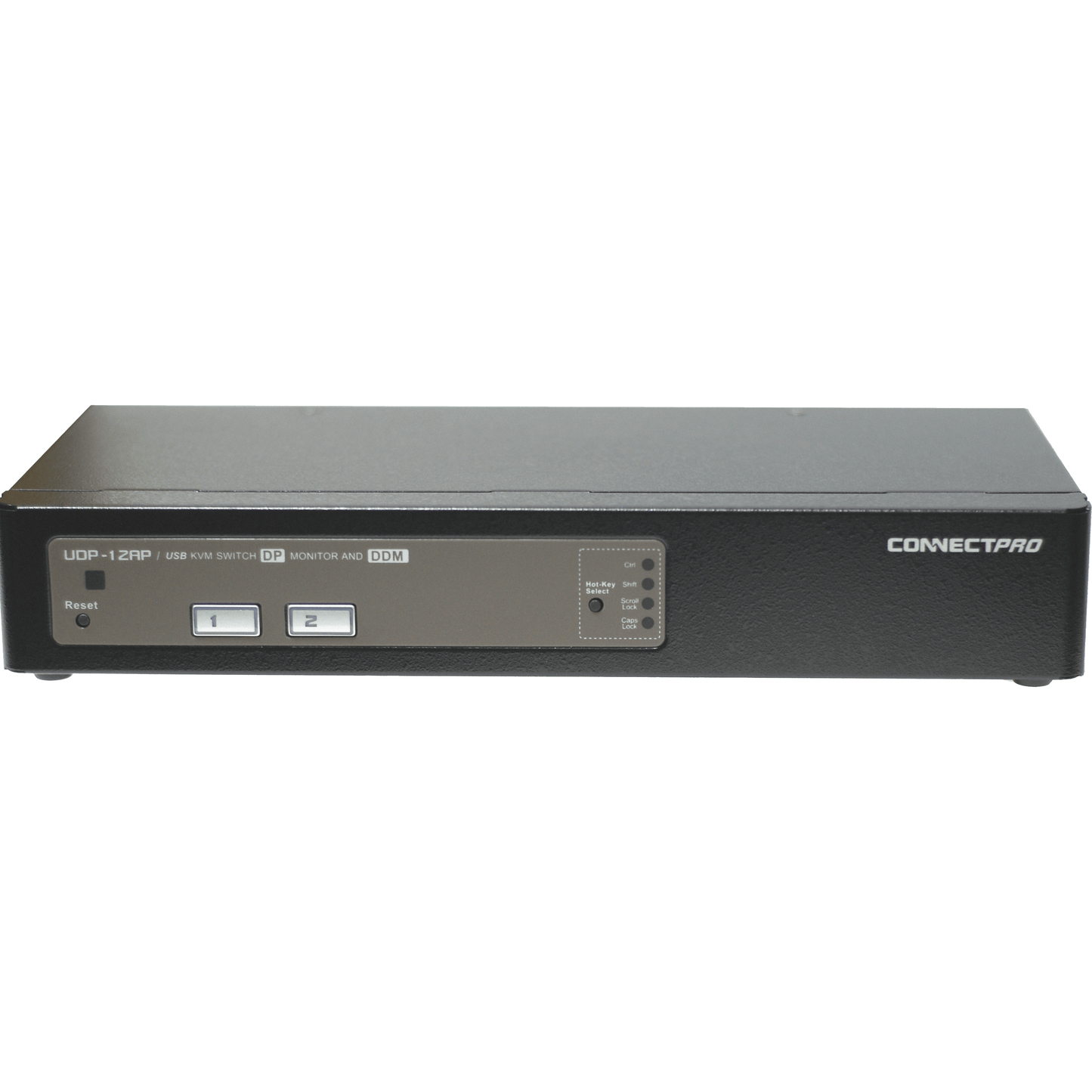

UDP-12AP DisplayPort 1.4 KVM Switch for Single Monitor and 2 Systems

UDP-12AP DisplayPort 1.4 KVM Switch for Single Monitor and 2 Systems

Cable Options
Regular price $349.00 USD
Regular price Sale price $349.00 USD
Sale Sold out
Shipping calculated at checkout.

Order Information:

 Product SKU What's included
UDP-12AP KVM switch with power supply cable
UDP-12AP+KIT-6 KVM switch with 6 ft. cables set (2 DisplayPort cables + 2 USB 3.0 cables + 2 audio cables + power supply cable)
UDP-12AP+KIT-FOC KVM switch with 6 ft. cables set (3 VESA Certified DisplayPort 2.1 cables + 2 USB 3.0 cables + 2 audio cables + power supply cable)


Product Overview

Industry-grade  DDM class DisplayPort 1.4 USB 3.0 KVM switch for sharing 1 monitor, USB 3.0 devices for two computer systems, gaming PC systems or laptop computers.

Our fastest KVM switch solutions are perfect for high-performance applications such as gaming, video editing, health care/hospital, stock trading, and many more kinds of applications. With lightning-fast switching speeds and ultra-low latency, you can be sure that your devices will respond quickly and accurately.

  • Support high resolution and high refresh rate up to 8K60hz (w/ DP1.4 DSC), 5K240(w/ DP1.4 DSC), 5K2880/60, 5K120hz, 4k 120 hz-144 hz, 3440x1440 144hz, 2560x1440 185~144hz when using the KVM switch in conjunction with fiber optic DisplayPort 1.4 cables or VESA certified DisplayPort 2.1 cables.  (4K120~144hz RGB/4:4:4 support is not guaranteed with different combinations of GPU I/O, monitors, cables, and docking stations in the line of connections)
  • Support up to 4k @ 60Hz~120 with VESA-certified DisplayPort cables
  • Support Apple Mac systems' new video Dynamic Variable refresh rate,
  • Support Apple both intel-based and new Apple-silicon-based Mac systems,
  • Fastest DisplayPort 1.4 KVM switch line in the world with patent USB DDM and Full-time EDID emulation technology,
  • Support Thunderbolt 4 hubs and Thunderbolt 4 docking stations connected to laptop computers.
  • The only KVM switch line supports multi-Logitech wireless Unifying Devices,
  • Support DisplayPort bi-direction full-bus link train for better DisplayPort video switching and optimal sync with each GPU on connected systems,
  • No video content/ GUI/ desktop app resizing and relocating while switching between connected systems.
  • Fastest switching time up to (less than 0.3 ms)
  • Our patented DDM technology allows no Latency USB HID devices switching (0.0 ms)

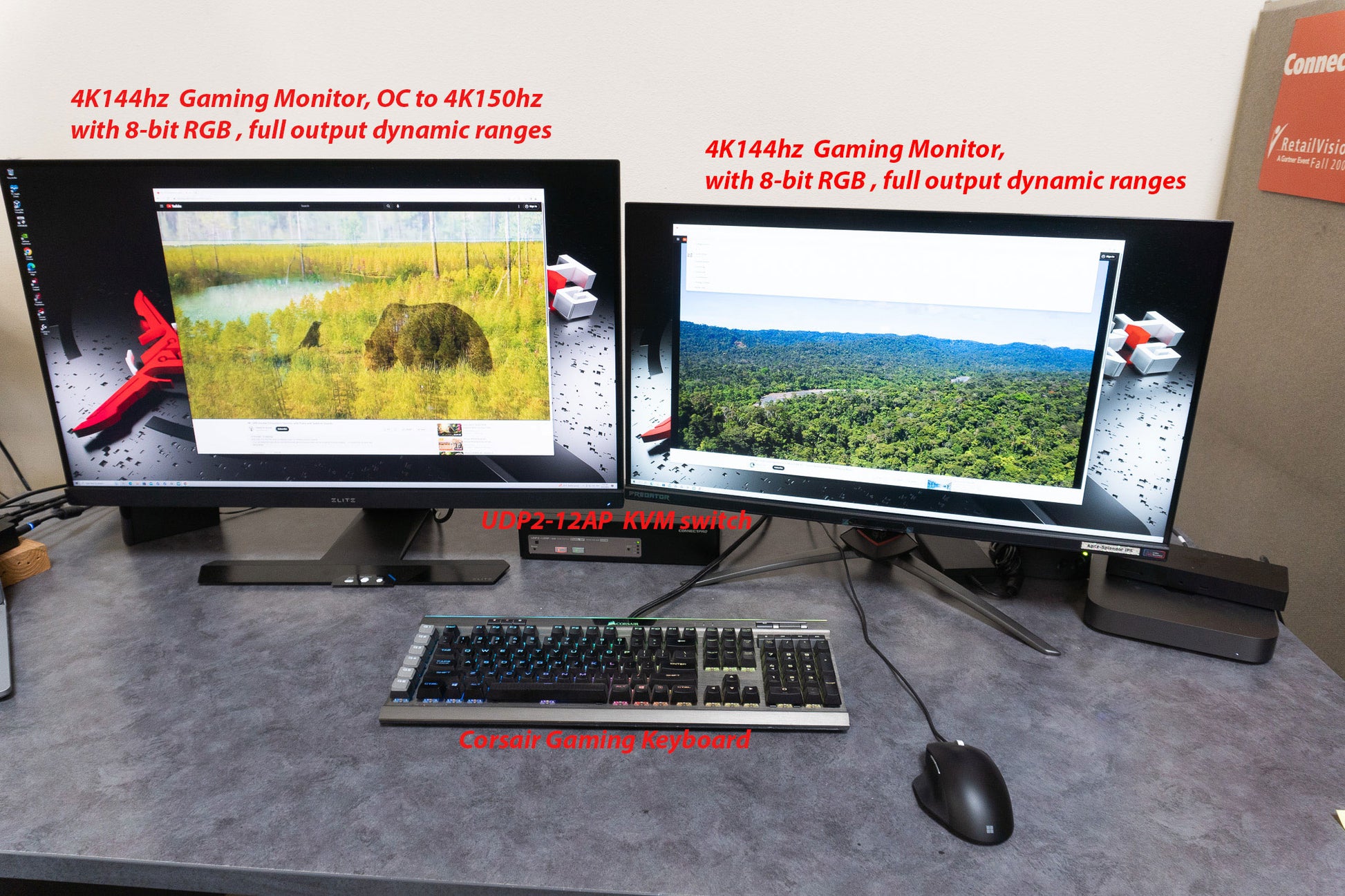

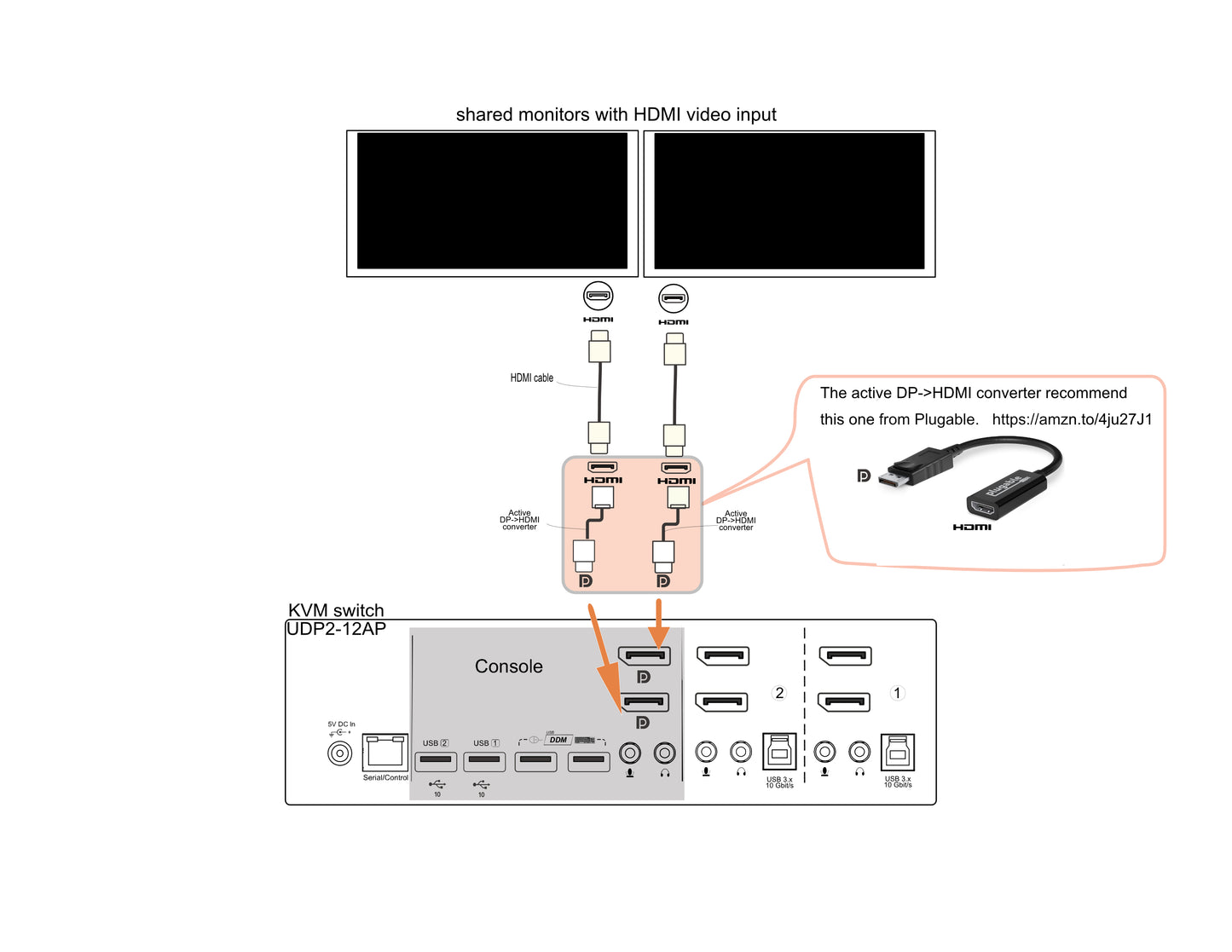

  • Stackable design for supporting and controlling more than 2 monitors (stacked two units to support 2 DisplayPort monitors) from one set of USB HID (keyboard and mouse..etc).
  • Built-in IR sensor for remote control from IR remote controller,
  • Built-in serial port for control and firmware upgrade,
  • Built-in Rackmountable (19-in rackmount kit - optional accessory),
  • Nvidia G-Sync, AMD Freesync, and VESA Adaptive Sync. compatible
  • Industry-leading standard 3-year warranty,
  • Lifetime tech support included.
  • Product made in Taiwan
  • Product dimensions are 10.84 inch x 5.16 inch x 1.73 inch

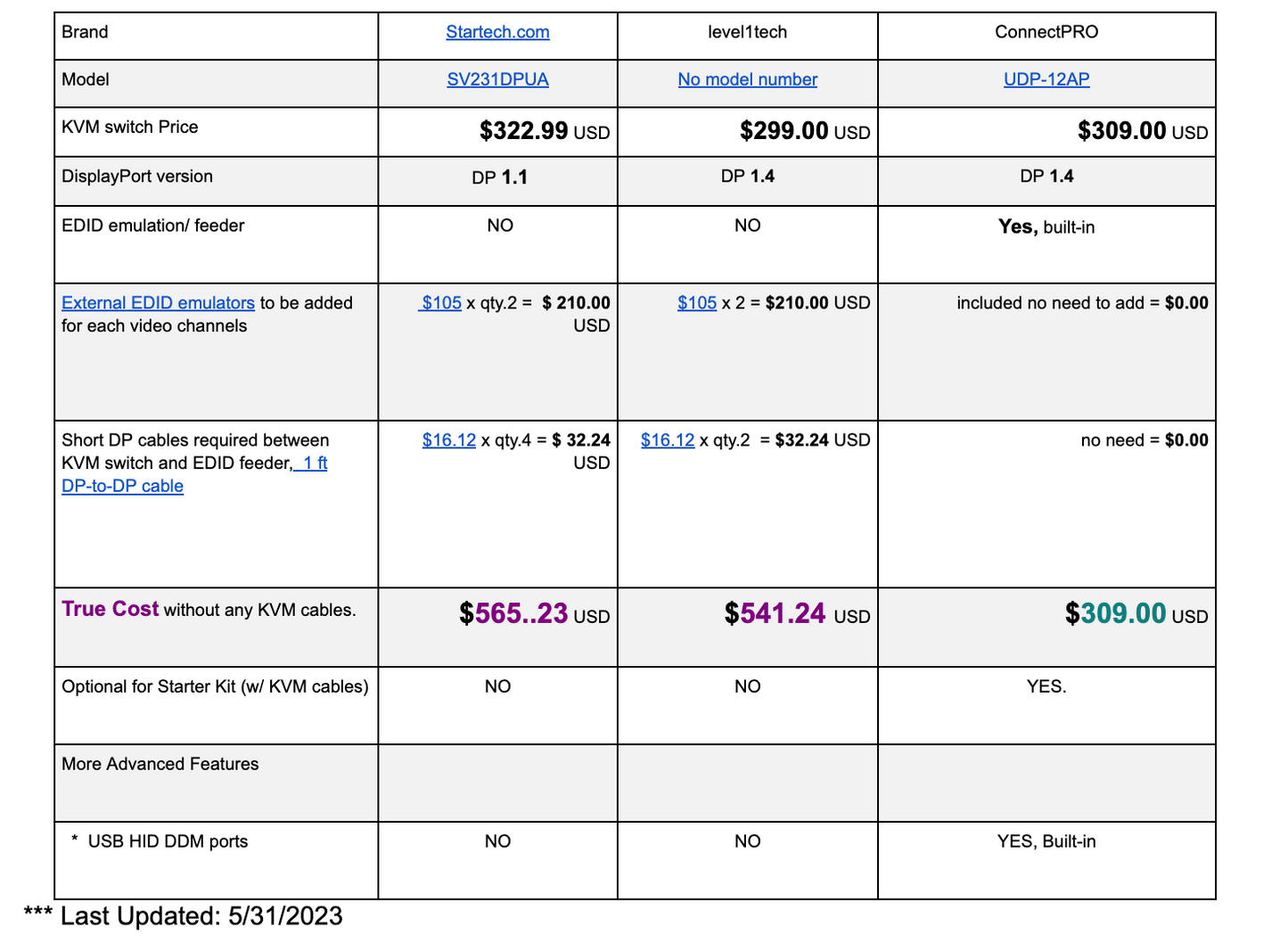

  • The best value and the lowest true cost for an advanced DisplayPort 1.4 KVM switch.
- For detailed dimension drawing, please refer to this page.



**Please note we do not recommend using LG monitors that have the option to toggle between DisplayPort 1.2 and DisplayPort 1.4 with the KVM switch due to known driver issues present on these types of LG monitors. For more information regarding recommended monitors, please reference the recommended monitors page here.**

Shipping & Returns

- Shipping costs are calculated based on the customer's shipping address.

- International customers are responsible for paying VAT/import taxes. We do not collect VAT/import taxes.

- Shipping fees are non-refundable

- All orders are shipped with signature required upon package delivery.

- Product return requests are accepted within 15 days of receiving the product. No product return requests will be accepted after the 15 day return window has passed.

- 2.9% credit card processing fee is non-refundable for all order cancellations and product returns

Warranty information

- All New ConnectPRO KVM switches will come with a 3 year warranty.

- Certified Pre-owned KVM switches come with a 1 year warranty

- ConnectPRO video emulators and other accessories will come with 1 year warranty.
