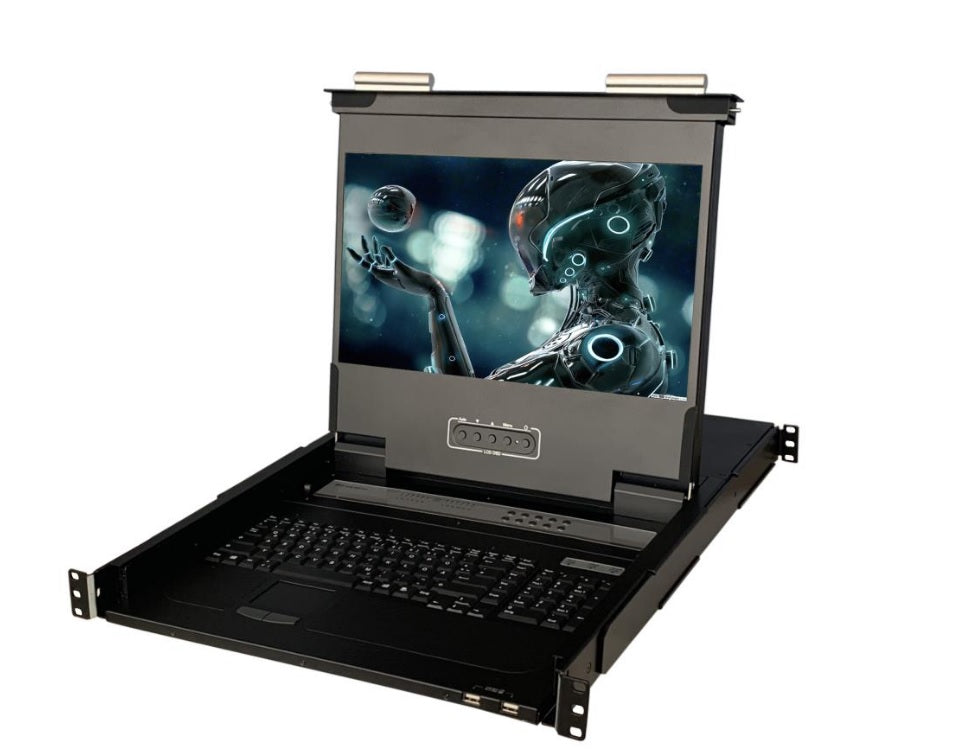

1U 17.3 inch Rackmount Rugged LCD Console Drawer w/ Integrated DVI-D KVM Switch - 12 Port
1U 17.3 inch Rackmount Rugged LCD Console Drawer w/ Integrated DVI-D KVM Switch - 12 Port
***This product is a made to order product. Please allow 2-3 weeks lead time once the order is placed.***
Product Overview
This high-performance 1U 17.3 inch rackmount rugged LCD console drawer with integrated 12 port DVI-D KVM switch is designed for both military and industrial applications. Built to withstand the harshest environments, it features a 17.3" LCD display with support up to 1920 x 1200 resolution, and 300 nits brightness for clear, crisp visuals. The KVM rack console also feature ultra-fast and reliable video switching, ensuring the user have a seamless workflow without disruptions. The integrated keyboard is sealed with IP65 silicone and equipped with a backlit trackball for precision in low-light conditions. The front EMC glass ensures reduced electromagnetic interference, making this unit ideal for mission-critical operations.
Features
- Meets the MIL-STD-810F/G standards
- 1U 17.3 inch LCD Drawer
- Support up to 1920 x 1080 FHD Resolution
- Built-In 12 Port DVI-D KVM Switch
- Additional one USB console ports to add local keyboard or mouse
- Sealed IP65 silicone keyboard and trackball with backlight
- MIL connector for power input
- Self-locking and auto release rails for ultra convenience
Product Specifications
Feature | Specification |
Host Port Connector |
Keyboard/Mouse: USB type B |
Host Ports | 12 Ports |
Maximum Distance | 16 ft. / 5 meters |
Video Resolution | up to 1920 x 1200 |
Computers Selection | Hotkey or push button |
Hotkey | Scroll-Lock |
Computer Port LED's | 2 x LED's per host port: Online (red) Active (green) |
Auto-Scan Intervals | Fixed time |
Local Console | Front 2 x USB port for additional keyboard & mouse |
Housing | Metal |
Operation Temperature | 0°C - 50°C |
Storage Temperature | -20°C - 60°C |
Humidity | 0 - 95%, Non-Condensing |
Mechanical | 19" Rack mount, 1U |
Dimensions | 447.6 x 42 x 600 mm |
Weight | 11 kg / 24.25 lbs |
Shipping & Returns
Shipping & Returns
- Shipping costs are calculated based on the customer's shipping address.
- International customers are responsible for paying VAT/import taxes. We do not collect VAT/import taxes.
- Shipping fees are non-refundable
- All orders are shipped with signature required upon package delivery.
- Product return requests are accepted within 15 days of receiving the product. No product return requests will be accepted after the 15 day return window has passed.
- 2.9% credit card processing fee is non-refundable for all order cancellations and product returns
Warranty information
Warranty information
- All New ConnectPRO KVM switches will come with a 3 year warranty.
- Certified Pre-owned KVM switches come with a 1 year warranty
- ConnectPRO video emulators and other accessories will come with 1 year warranty.
